General Details
Swage Fork Terminal with Internal Thread is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

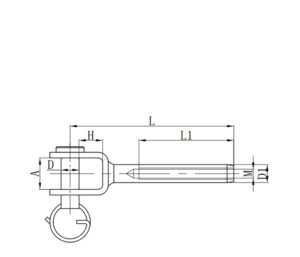

| Swage Fork Terminal with Internal Thread | |||||||||||||||
| ITEM NO | M (mm) | A (mm) | D (mm) | H (mm) | D1 (mm) | L1 (mm) | L (mm) | ||||||||
| 2006-0005 | M5 | 8 | 5 | 10 | 7.5 | 27 | 55 | ||||||||
| 2006-0006 | M6 | 9 | 6 | 10 | 8 | 30 | 60 | ||||||||
| 2006-0008 | M8 | 13 | 8 | 12 | 12 | 31 | 65 | ||||||||
| 2006-0010 | M10 | 16 | 10 | 14 | 14 | 40 | 75 | ||||||||
