General Details

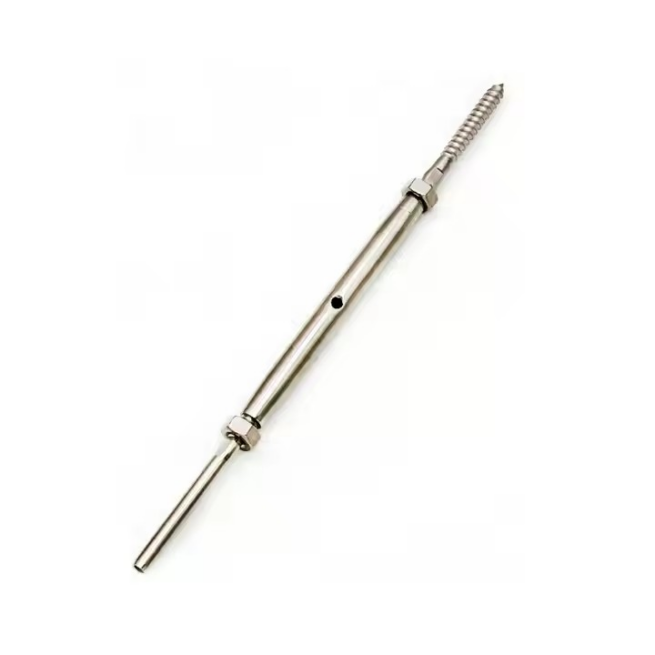

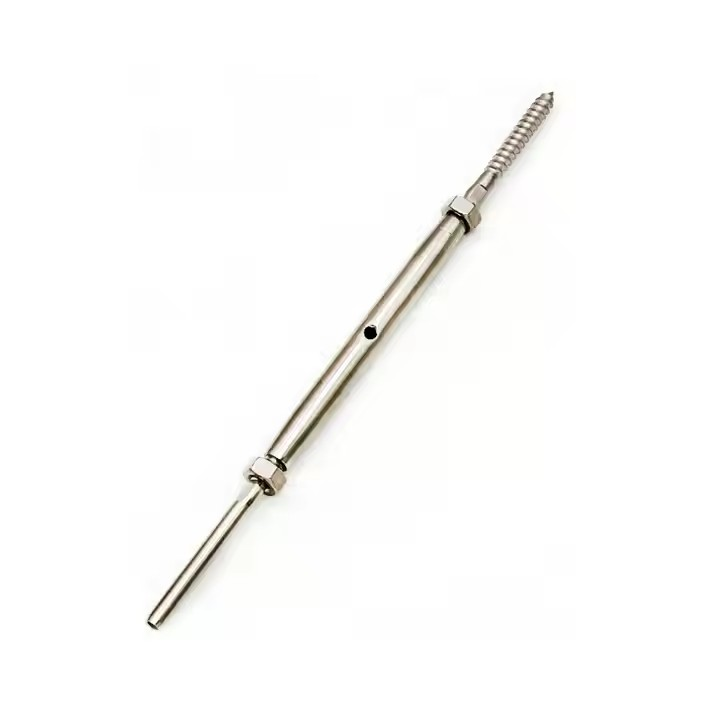

Rigging Screw with Swage and Dowel Screw is made from grade 316 stainless steel and used in marine, industrial and architectural applications.

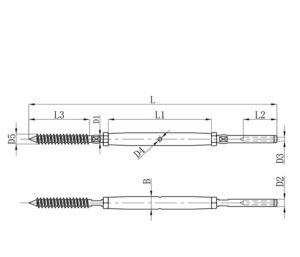

| Rigging Screw with Swage and Dowel Screw | |||||||||||||||
| ITEM NO | WIREΦ | D1 | B | L | L1 | L2 | L3 | D2 | D3 | D4 | D5 | Body THK | |||
| in | in | in | in | in | in | in | in | in | in | in | in | ||||
| 1016-1/8 | 1/8″ | 1/4″ | 0.39″ | 8.07″ | 3.74″ | 1.45″ | 1.5″ | 0.218″ | 0.14″ | 0.13″ | 0.25″ | 0.07″ | |||
| 1016-3/16 | 3/16″ | 1/4″ | 0.39″ | 8.46″ | 3.74″ | 1.9″ | 1.5″ | 0.295″ | 0.201“ | 0.13″ | 0.25″ | 0.07″ | |||
